Check Media

This section demonstrates how to include various types of media in Sphinx documentation.

Available Media Files

The project contains the following media files:

  • Gas_V1_breadboard.svg - SVG diagram of a gas sensor breadboard

  • 20180807_121321.jpg - Sample photograph

Basic Image Usage

Simple Image

Here’s how to include a basic image:

Gas sensor breadboard diagram

This SVG shows the breadboard layout for a gas sensor circuit.

Photograph Example

Including a photograph with specific sizing:

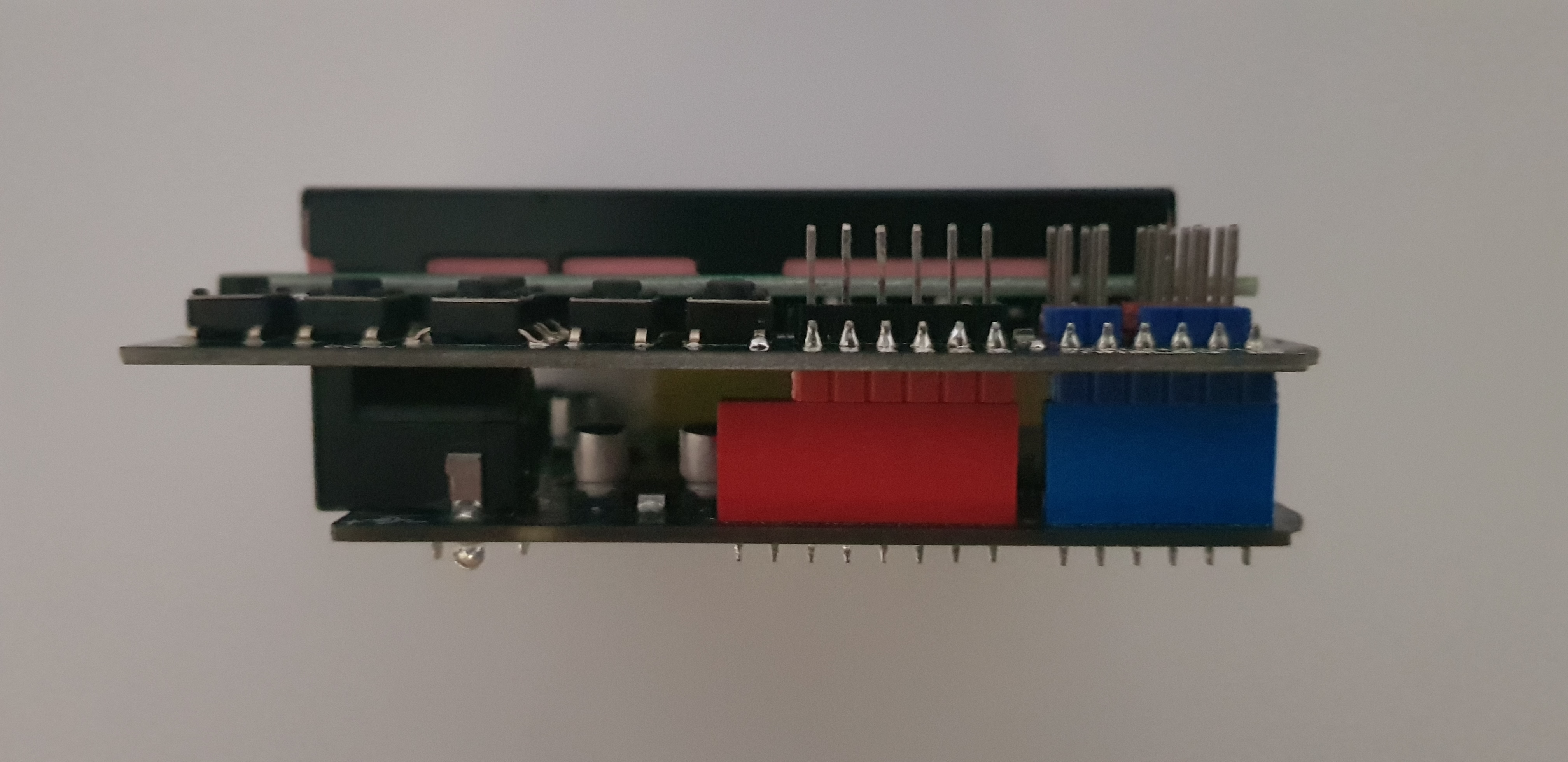

Sample photograph

Figure with Caption

Using the figure directive to add captions:

Gas sensor breadboard layout

Figure 1: Gas Sensor V1 Breadboard Layout - This diagram shows the complete wiring schematic for connecting a gas sensor to a microcontroller using a breadboard.

Advanced Image Options

Responsive Images

You can make images responsive by using percentage widths:

Responsive image example

Side-by-side Images

For comparing images, you can place them side by side using tables:

Image Alignment Options

Left Aligned

Left aligned image

This text flows around the left-aligned image. You can see how the image appears on the left side of the page while the text wraps around it. This is useful for inline images that complement the text content.

Right Aligned

Right aligned image

Similarly, right-aligned images appear on the right side with text flowing around them on the left. This creates an attractive layout for documentation.

Best Practices for Images

File Formats

  • SVG - Best for diagrams, logos, and scalable graphics

  • PNG - Good for screenshots and images with transparency

  • JPG - Suitable for photographs and complex images

Optimization Tips

  1. File Size: Keep images optimized for web

  2. Alt Text: Always provide descriptive alt text for accessibility

  3. Width/Height: Specify dimensions to prevent layout shifts

  4. Format: Choose the right format for your content type

Image Organization

  • Store images in a dedicated media/ or images/ directory

  • Use descriptive filenames

  • Organize by categories if you have many images

  • Consider version control for binary files

Code Example: Adding Images

Here’s the reStructuredText syntax for the images shown above:

# Basic image
.. image:: media/Gas_V1_breadboard.svg
   :width: 400
   :alt: Gas sensor breadboard diagram
   :align: center

# Figure with caption
.. figure:: media/20180807_121321.jpg
   :scale: 50%
   :alt: Sample photograph

   This is the figure caption that appears below the image.

# Responsive image
.. image:: media/Gas_V1_breadboard.svg
   :width: 100%
   :alt: Responsive SVG diagram

Troubleshooting Images

Common Issues

  1. Image not showing: Check the file path is correct relative to the source file

  2. Broken layout: Ensure width/height values are reasonable

  3. Large file sizes: Optimize images before adding to documentation

  4. Missing alt text: Always include alt text for accessibility

File Path Examples

# From root directory
.. image:: media/image.png

# From subdirectory
.. image:: ../media/image.png

# From _static directory (copied during build)
.. image:: /_static/image.png
